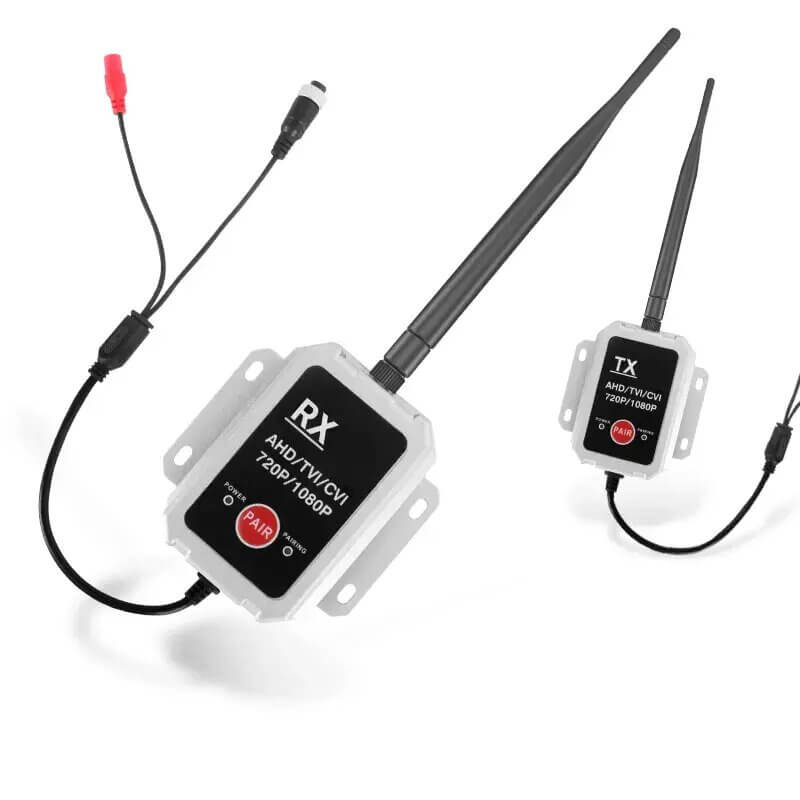

SKD Wireless Video Transmitters & Receivers Kit


SKD Wireless Video Transmitters & Receivers Kit

SKD Wireless Video Transmitters & Receivers Kit

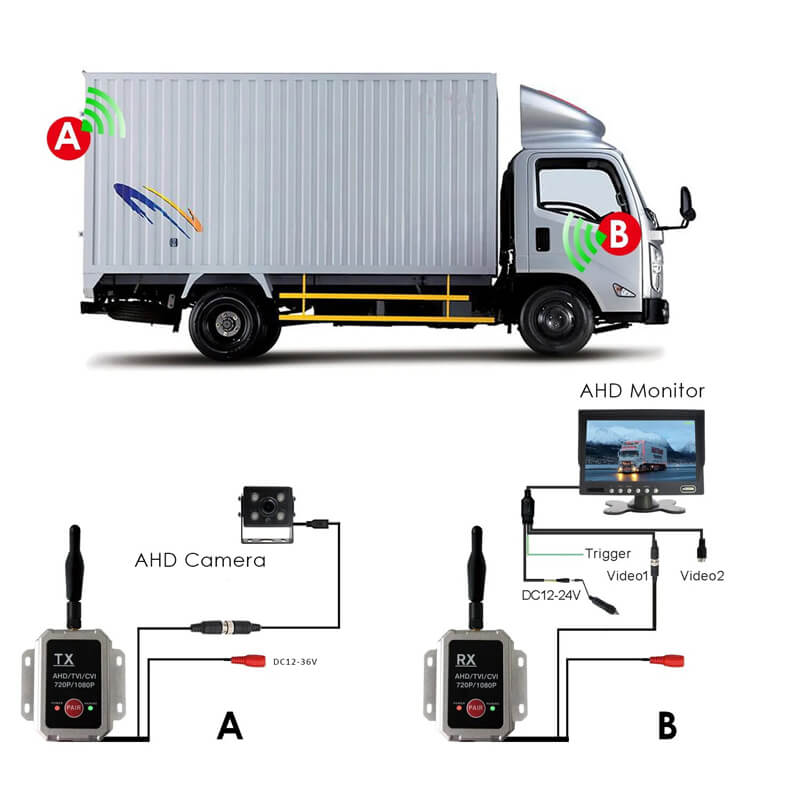

Mainly to update your wired vehicle system to wireless version via this Wireless Video Transmitters & Receivers Kit. Support SKD to export and assistant you saving custom fee.

  • Brand:

    DUUHNN

  • Item NO.:

    DH-TR01K

  • Order(MOQ):

    1Kit

  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay

  • Price:

  • Warranty:

    2Years

  • Delivery Time:

    3-5 working days for sample
Inquiry now

Introduction

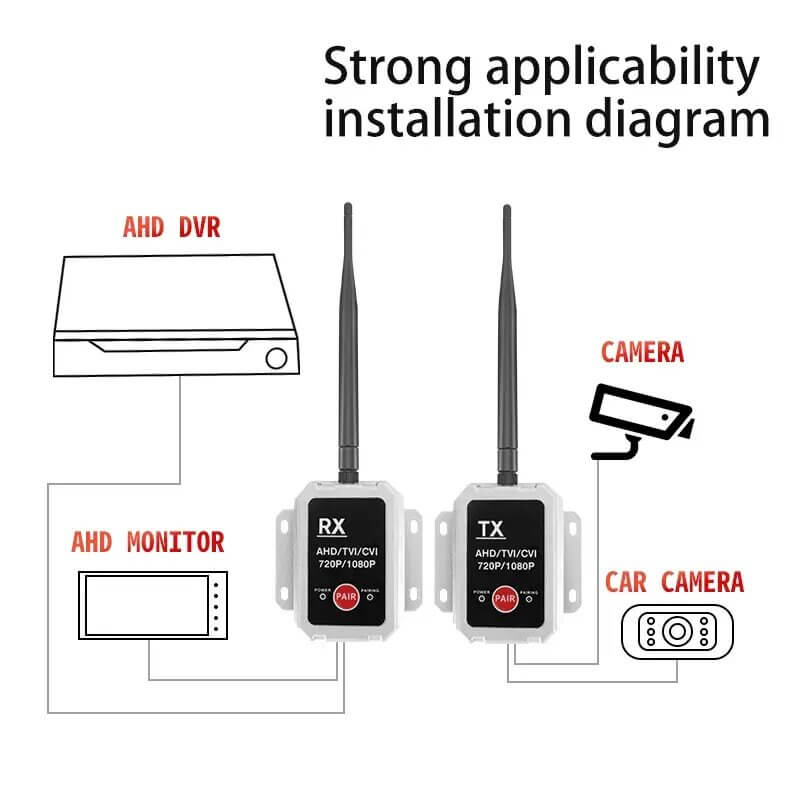

We design this Wireless Video TX & RX Kit to update your existing wired system to wireless version easily. Support AHD/TVI/CVI input,and widely used on vehicle backup camera, CCTV camera and medical camera system etc.


Highlight

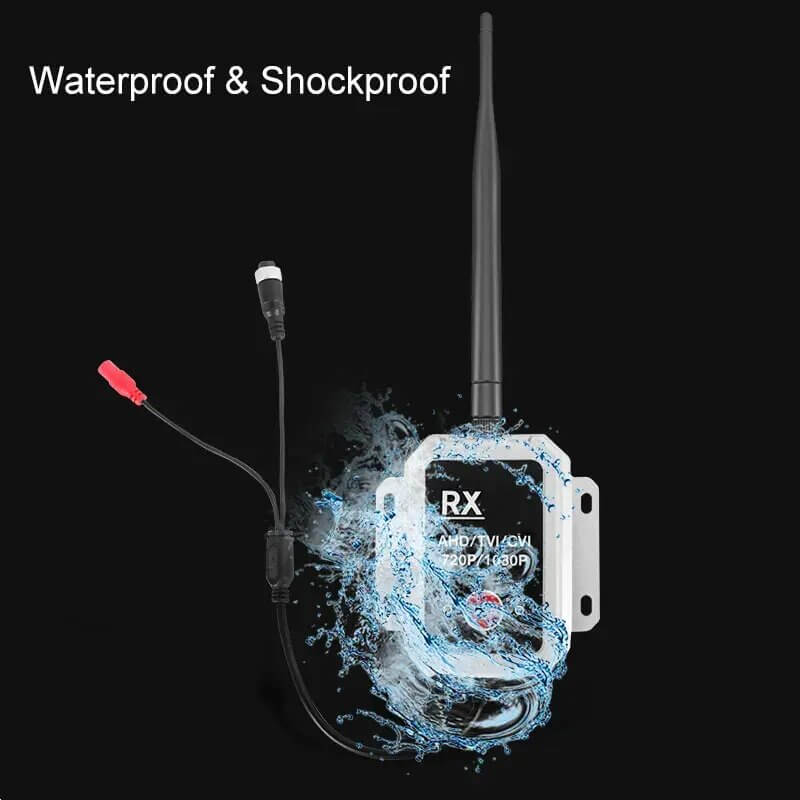

* Rugged design and IP69K waterproof;

* Camera resolution input support 720P & 1080P AHD/TVI/CVI, and video output 720P/1080P;

* Encrypted digital wireless transmission, no interfences with bluetooth, wifi route, car stereo, 3G/4G phones devices etc;

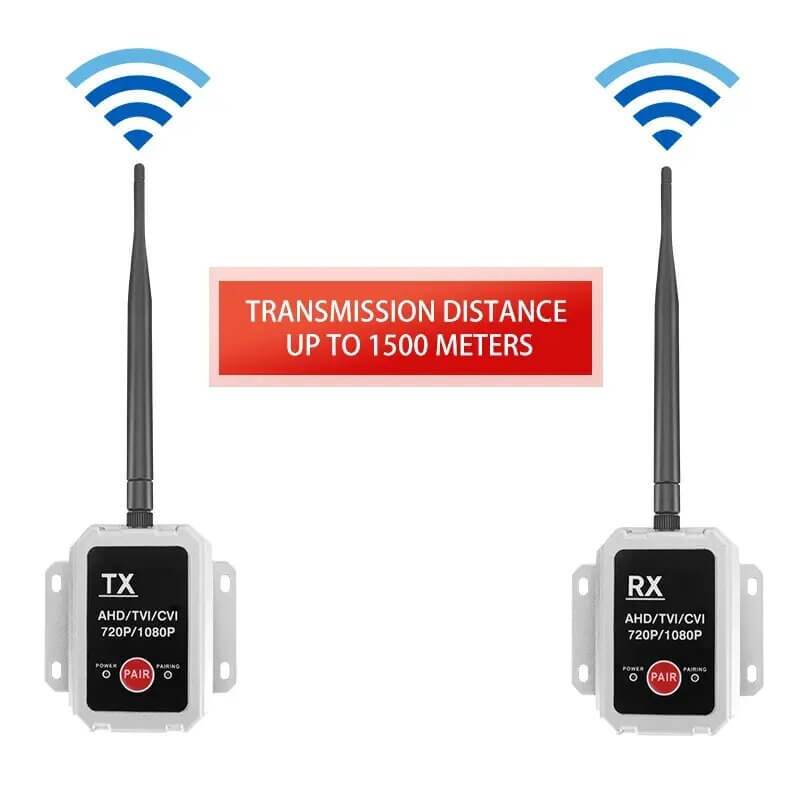

* Over 600ft powerful transmitter working range

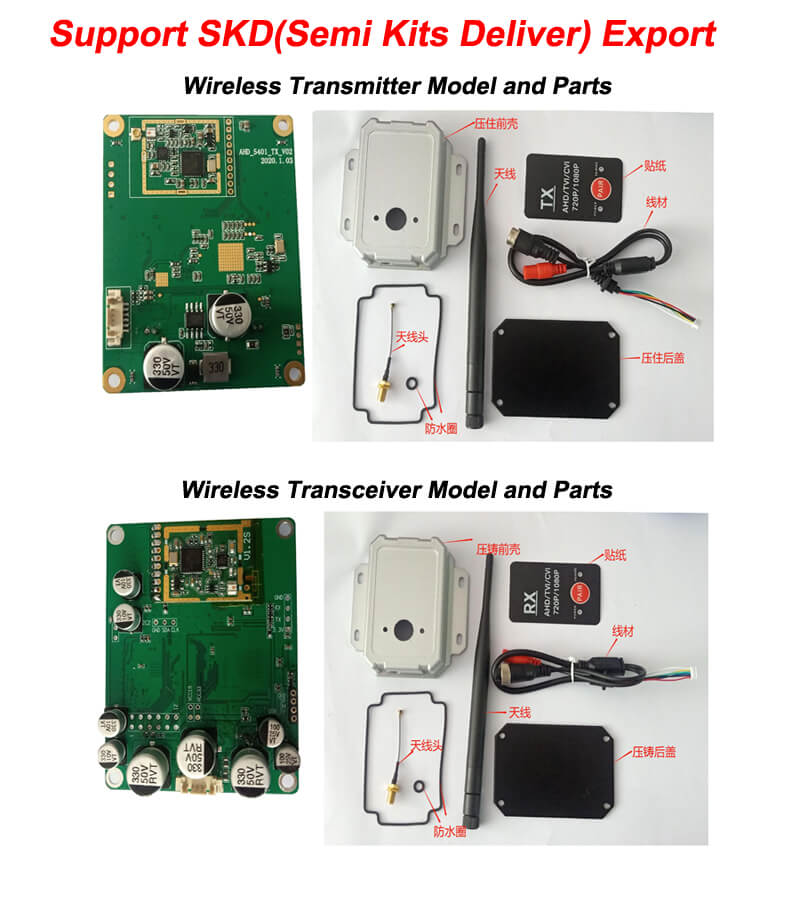

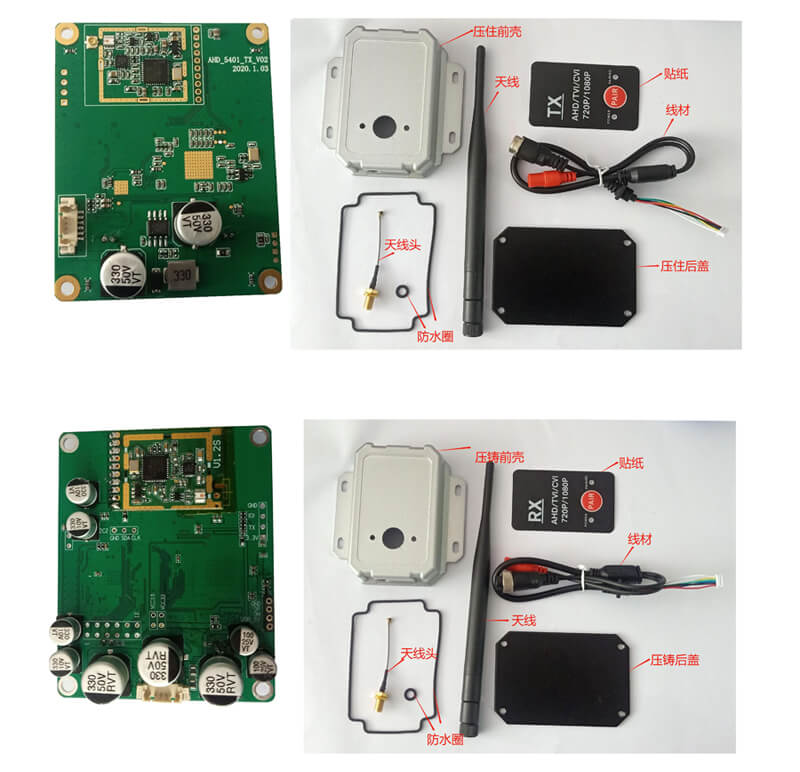

* Support SKD(Semi Kits Deliver) export to save your import custom tax

Technical Parameter

ItemSpecification
TypeWireless Transceiver and Transmitter Kit/
Wireless Receiver and Transmitter
Video InputAHD/TVI/CVI/720P/1080P
Video OuputAHD 720P@30f/s,1080P@30f/s
View Angle90°-120°
FunctionWireless Transceiver and Transmitter, Video Transmision
Power5W
VoltageDC12-42V
Operation Frequency2400~2483.5MHz
Output Power20dBm With Power Control
Receiving Sensitivity-86dBm@ QPSK
TX current consumption200Ma
RX current consumption200Ma
RF Band Width12Mbps
ModulationQPSK/16QAM
Power on time2S
Delay timeMax 120Ms
Operating Temperature-20 ~ +80°C
Operating Humidity85%RH


Package Included

1 x Transmitter

1 x Receiver

1 x user manual
