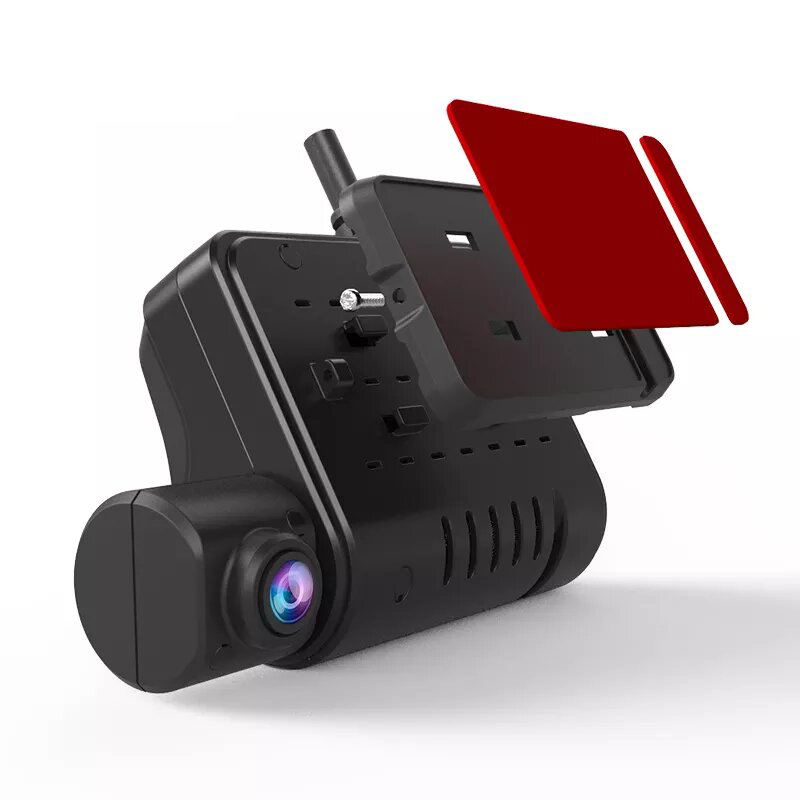

Fleet dashcam 1080P,support to add external 3 cameras. 4G, wifi, GPS optional. Easy to install and suit for fleet GPS tracking with alarm feature.
Brand:
DUUHNNItem NO.:
DH-RC33Order(MOQ):
1pcsPayment:
TT, Paypal,Western Union,MoneyGram,AlipayPrice:
Warranty:
2YearsDelivery Time:
2-5 working days for sampleshare to:

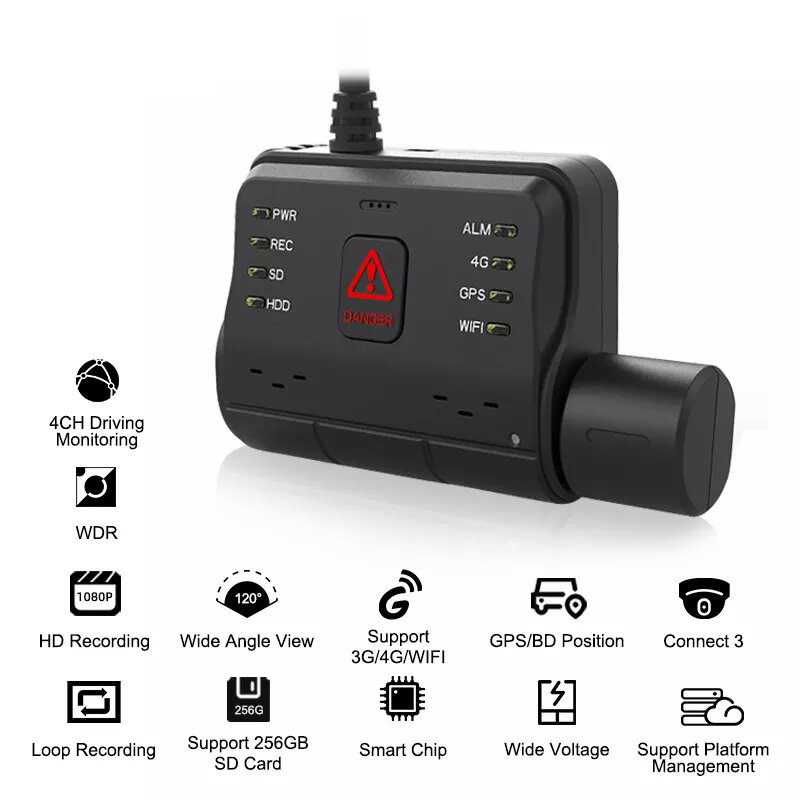

Feartures
* Built-in high performance HiSilicon chipsets, coded with H.264 standard, high compression rate and clear image quality
* Built-in G-sensor, monitor driver’s behavior in real time
* Auxiliary ranging for reverse image
* Video horizontal and vertical mirror adjustment
* Built-in 1ch AHD 1080P camera
* Can connect with 3 external cameras (for optional)
* Standard configuration: not including monitor; but can connect an external monitor with CVBS output

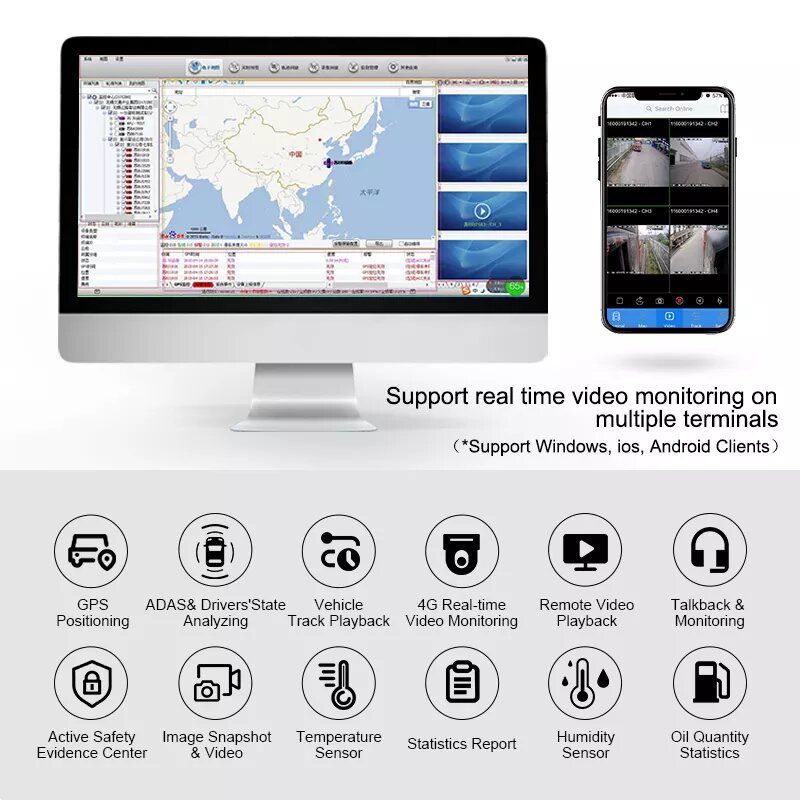

* Support platform management (4G function for optional)
POWER
* Professional In-vehicle power design, 9-36V dc wide voltage range
* Multi protection circuits like under-voltage, short, reversed plug-in, suitable for various types of vehicles.
* Smart power management system, shutdown under low voltage, low consumption
DATA STORAGE
* Special file management system to encrypt and protect the data
* Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
* Built-in ultracapacitor, avoid data loss and SD card damage caused by sudden outage
* Support USB plug-in Mobile hard disk (only support SSD), max 2TB
* Support SD card storage, max 256GB
TRANSMISSION INTERFACE
* Support GPS/BD optional, high sensitivity, fast positioning
* 2.4GHzSupport wireless download by WIFI, 802.11b/g/n, 2.4GHz
* Built-in 3G/4G, support LTE/HSUPA/HSDPA/WCDMA/EVDO (for optional)
Specification
Item | Device Parameter | Performance |
System | Main Processor | Hi3521A |
Operating System | Embedded Linux OS | |
Operating language | Chinese/English | |
Operating Interface | Graphical menu interface, support mouse operation | |
Password Security | User password/Admin password | |
Video&Audio | TV System | PAL/NTSC |
Video Compression | H.264 | |
Image Resolution | 1080P/720P /960H/D1/CIF | |
Playback Quality | 1080P/720P /960H/D1/CIF | |
Decoding Quality | Support 4ch 1080P real time, but 1ch 1080P for standard configuration | |
Recording Quality | Class 1-6 optional | |
Image Display | Support 1, 2, 3, 4 display (for optional) | |
Audio Compression | G.726 | |
Audio Recording | Video & Audio synchronized recording | |
Recording & Playback | Recording Mode | Auto recording/alarm recording/alarm recording lock |
Video Bit Rate | Full frame 4096Mbps，6 classes image quality optional | |
Audio Bit Rate | 8KB/s | |
Storage Media | SD card | |
Video Inquiry | Inquiry via channel. Recording type or alarm type | |
Local Playback | Signal channel playback as time | |
Software Upgrading | Upgrading Mode | Manual/Auto/Remote Upgrading |
Upgrading Method | USB interface/Wireless network/SD card | |

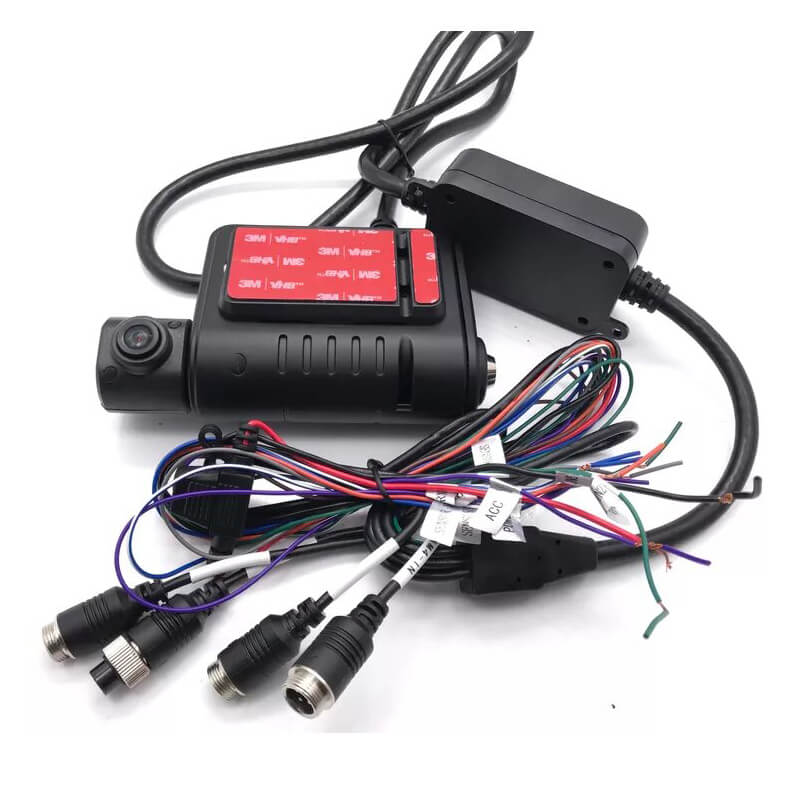

Interface | AV Input | 1 channel 1080P AHD camera; 3 channel aviation AV input (for optional) |
AV Output | 1channel aviation AV output, video format: CVBS | |
Alarm Input | 4 digital inputs | |
SD card | 2 SDXC high speed card (max 256G) | |
USB interface | 1 MiniUSB (support mouse operation, USB plug-in SSD) | |
Ignition Input | 1 ACC Signal | |
UART | 1 TTL Level | |
LED Indication | PWR/REC/SD/HDD/ALM/4G/GPS/WIFI | |
Disk Locker | 1 | |
Extended Function | GPS | Support detecting antenna Plug in/Unplug/Short circuit |
2G/3G/4G | Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE | |
WIFI | 802.11b/g/n, 2.4GHz | |
Others | Power Input | DC：9V~36V |
Power Consumption | Standby 3mA Max power consumption 18W @12V 1.5A @24V 0.75A | |
Working temperature | -20 - 70℃ | |
Storage | 1080P 1.8G/H/Channel 960H 750M/H/ Channel | |

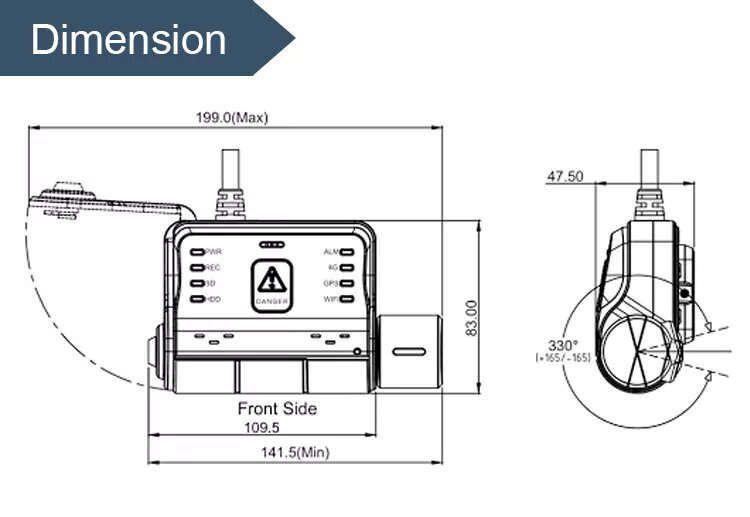

Dimension (L*W*H) | 162mm*153mm*52mm |
