7'' TFT LCD Screen Monitor Display for Security Commercial Truck Camera Systems and tractor trailer camera systems.
Brand:
DUUHNNItem NO.:
DH-MT70Order(MOQ):
1pcsPayment:
TT, Paypal,Western Union,MoneyGram,AlipayPrice:
Warranty:
2YearsDelivery Time:
2-5 working days for sampleshare to:

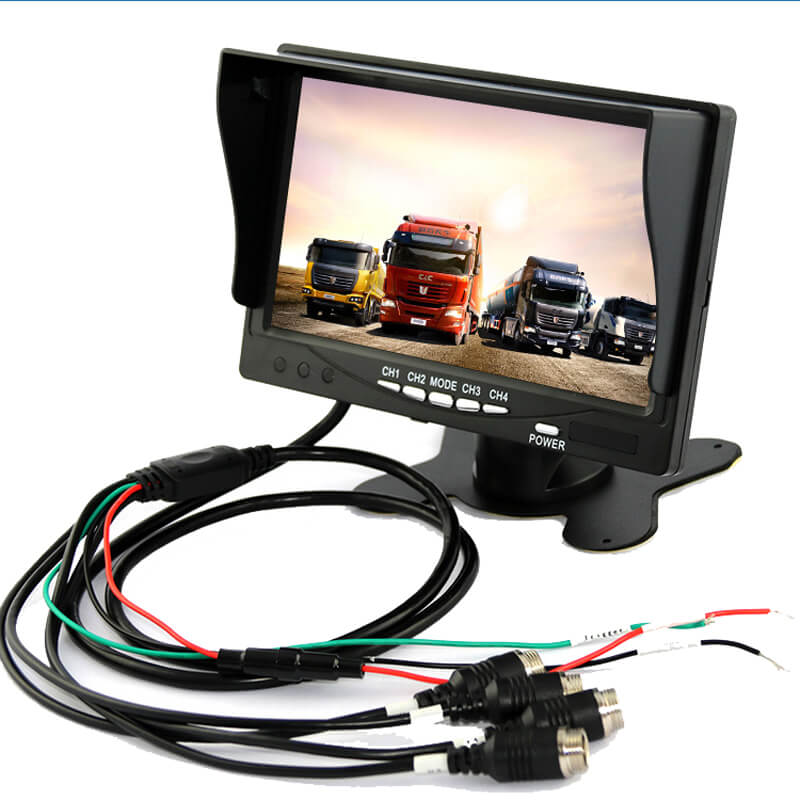

7'' LCD Screen Monitor for Security Commercial Truck Camera Systems
Main Features:
* 7'' LCD Monitor for rearview commercial vehicle system
* Adjustable quad screen 1/2/4 CH, multiple views are optional
* Support CVBS 1/2/4Ch fleet truck back up camera
Specifications
Model | DH-MT70 |
Screen size | 7“ CVBS TFT panel |
Aspect Ratio | 16:9 image |
Video Input | 1/2/4 channels optional |
Video resolusion | Support CVBS 1/2/4Ch |
Speaker | 1 Channel(Options) |
Trigger | 2 channels |
Resolution | 1024 x 3(RGB) x 600 |
Brightness | 250cd/m2 |
Contrast radio | 700:1 |
Viewing Angle | H:85 V:85 |
External Dimensions | 172*116*43mm (W)*(H)* (T) |
Operating Voltage | 12-36V DC |
Power | 2.6W(No cameras) |
Operation Temperature: | -20℃~+70℃.RH95% Max |
Storage Temperature: | -30℃~+80℃.RH95% Max |
Application | commercial truck camera systems monitor |
Options | Speaker，remote control |
