Forward view camera match with AI MDVR as ADAS camera
Brand:
DUUHNNItem NO.:
DH-FC01Order(MOQ):
1pcsPayment:
TT, Paypal,Western Union,MoneyGram,AlipayPrice:
Warranty:
2YearsDelivery Time:
2-5 working days for sampleshare to:
Feature
* Forward view ADAS vehicle camera anti-collision, lane departure warning;

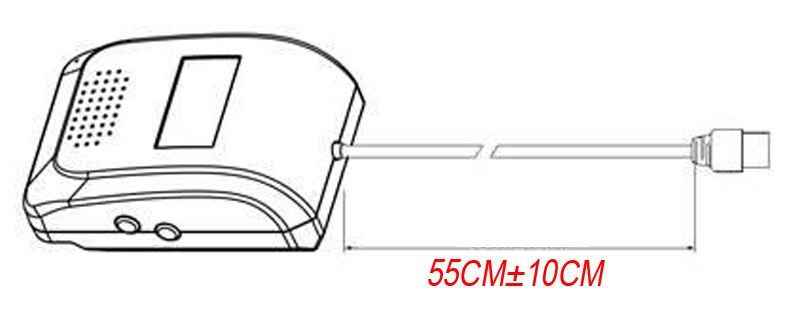

* Cable is standard 60cm air connector as default;
* Usually install under the middle rear view mirror of the front windshield;
* Audio sound or speaker optional
Specification
Sensor | IMX307 CMOS 1/2.8 inch | |||
Pixel size | 2.9μm*2.9μm | |||
TV Standard | PAL | |||
Resolution | 1920（H）X1080（V） 2 mega pixels | |||
Synchronization system | Inner Synchronization | |||
Vertical sync frequency | 50Hz / 60Hz | |||
Minimum illumination | 0.01Lux/F1.2 | |||
Video out | 1.0vp-p, 75Ω | |||
Gamma rate | 0.45 | |||
AGC | auto | |||
Wide dynamic range | 96dB | |||
Sound to Noise Ratio | > 48dB | |||
White balance | auto | |||
BLC | auto | |||
Lens | size | f=2.8mm | f=3.6mm | f=6mm |
horizontal angle | 105° | 80° | 50° | |
Diagonal angle | 125° | 100° | 70° | |
IR light | no | |||
IR-CUT | no | |||
Audio | no | |||
Electric current | DC12V 65mA±10% | |||
Voltage | DC5-16V | |||
Operating temperature | －20°C~70°C , RH95％ MAX | |||
Storage temperature | －30°C~80°C，RH95％ MAX | |||
Net Weight | 60g(without cable) | |||
