AI Pedestrian and Cyclist Detection Vision System


AI Pedestrian and Cyclist Detection Vision System

AI Pedestrian and Cyclist Detection Vision System

AI vision system to detectpedestrian/cyclists. External buzzer is optional.

  • Brand:

    DUUHNN

  • Item NO.:

    DH-AIS02

  • Order(MOQ):

    1pcs

  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay

  • Price:

  • Warranty:

    2Years

  • Delivery Time:

    2-5 working days for sample
Inquiry now

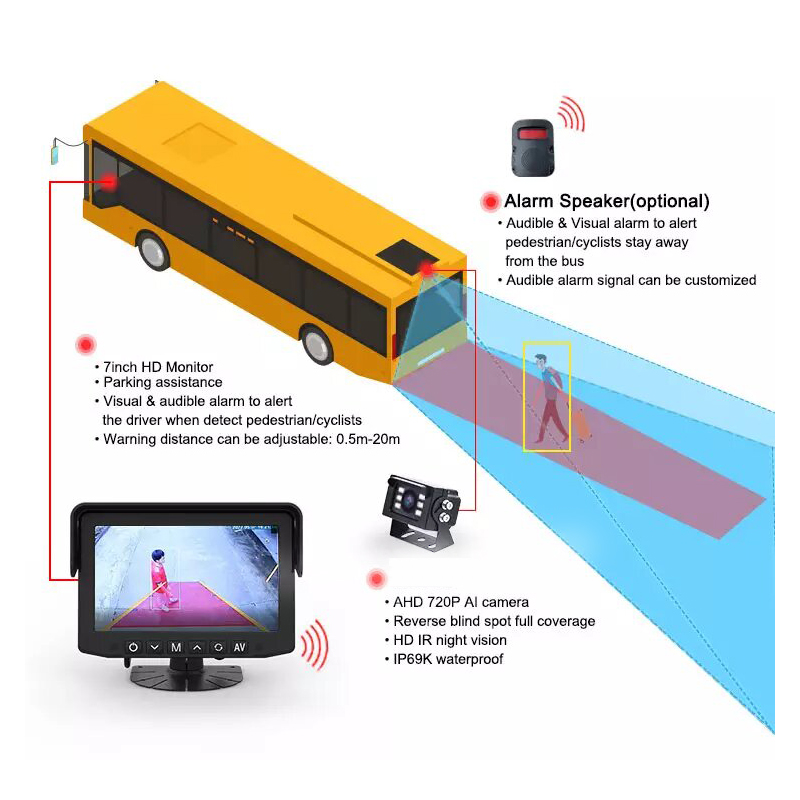

Feartures:


1) 7inch HD reversing camera system for real time detecting pedestrian/cyclists

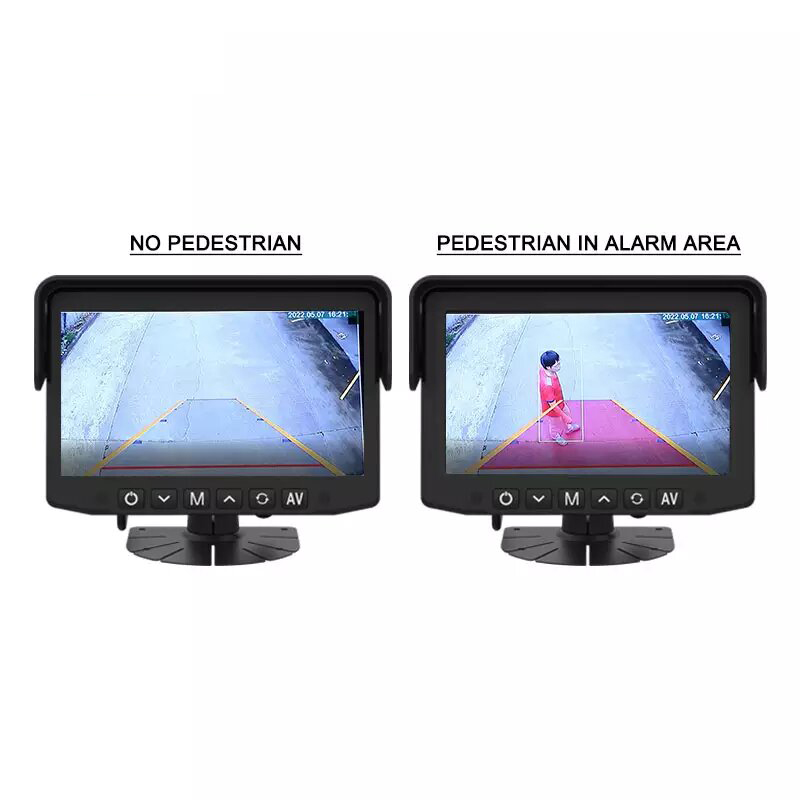

2）Audible alarm output and highlight pedestrian/cyclists with box

3）Monitor built in speaker, support audible alarm output

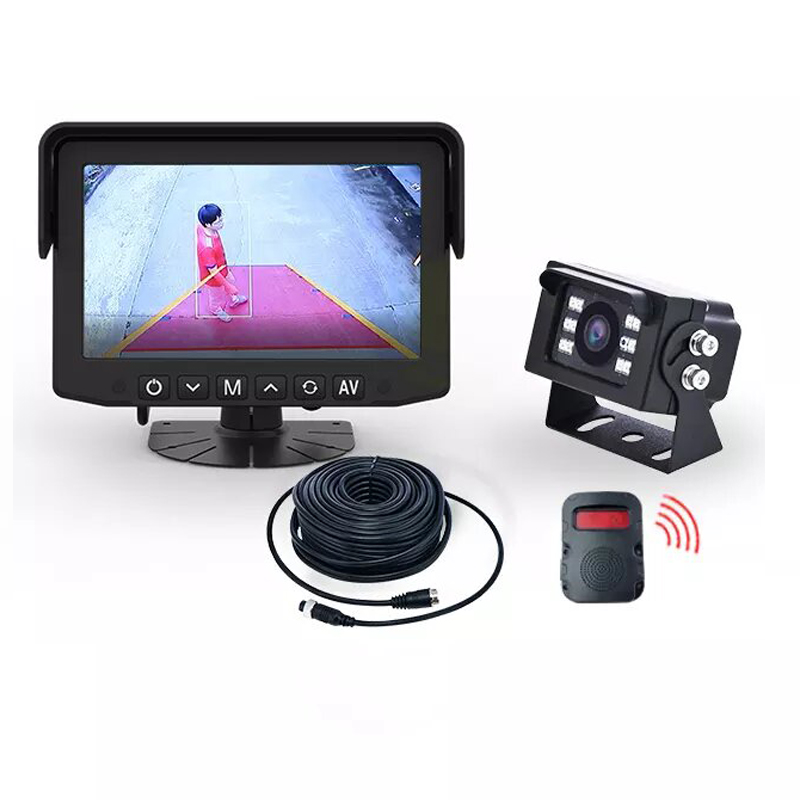

4）External buzzer to alert pedestrian/cyclists (optional)

5）Warning distance can be adjustable: 0.5~20m

6）Application: bus, coach, delivery vehicles, construction trucks, forklift and etc.


Specification


Product Name
AI Pedestrian Cyclist Detection System

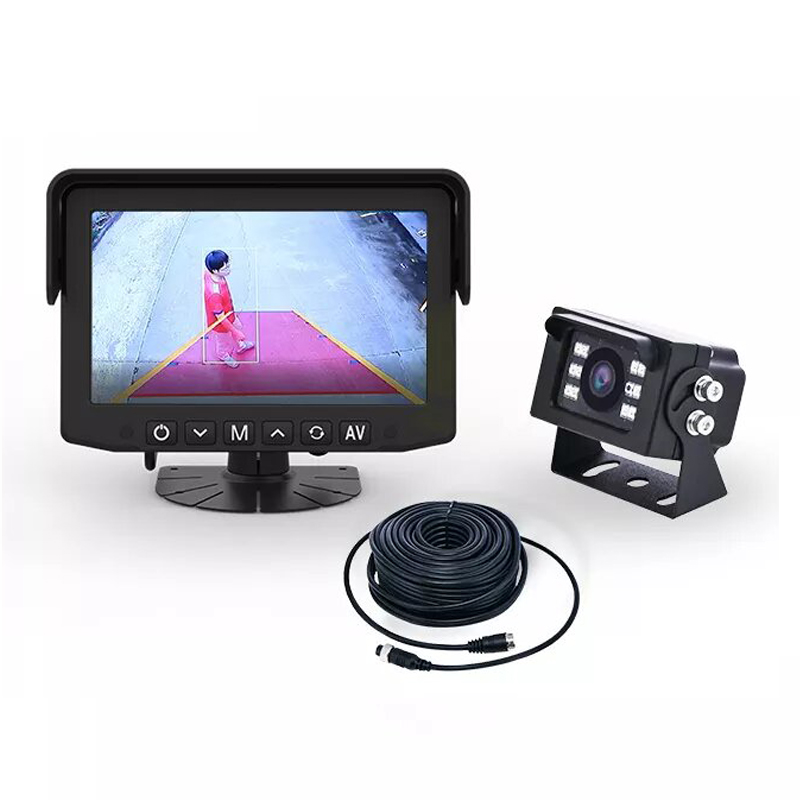

Package List

1pcs 7inch monitor,; 1pcs AI reversing camera, ; 1pcs 10 meter video cable.

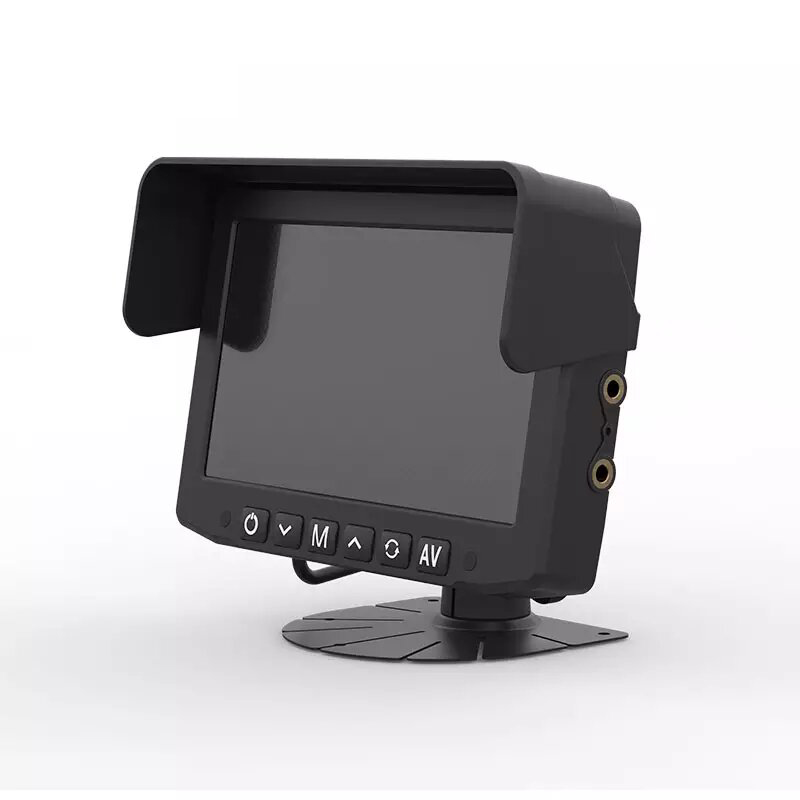

7INCH Monitor
Monitor
7inch IPS monitor
Size
7 inch （16 : 9）
Resolution
1024(H) ×600(V)
Brightness
400cd/m²
Contrast
500 (Typ.)
Viewing Angle
85/85/85/85
Power Supply
DC12V /24V (10V~32V)
Power Consumption
MAX 5W
Video Input
AHD 1080P/720P/CVBS
TV System
PAL/NTSC/AUTO
Language
Chinese/English
Operation mode
button, remote controller
CDS
Auto dimming
BSD Blind Spot Detection Area
Highlight in red
BSD Audible Alarm
audio power: MAX 2W
Working Temperature
- 2 0 ～ 7 0 ℃
AI Reversing Camera
Model
DH-AIS02
Image Sensor
1/2.9”
TV System
PAL/NTSC (Optional)
Effective Pixel
1280 (H) x 720 (V)
Sensitivity
0 Lux (IR LED On)
Scanning System
Progressive scan RGB CMOS
Synchronization
Internal
S/N Ratio
More than 38dB(AGC Off)
Auto Gain Control (AGC)
Auto
Electronic Shutter
Auto
Back Light Compensation
Auto
Infrared LED
850nm
Infrared LED Range
18 LEDs
Video Output
1 Vp-p, 75Ω，AHD
Audio
Connect external voice alarm (optional)
Mirror
Available
BSD algorithm
Available
Lens
f2.8mm Megapixel
Voice alarm volume output
MAX 2W
Power Supply
9-18V DC
Power Consumption
170mA
Net Weight
210g
Weatherproof/Water Proof
IP69K
Operating Temperature
-20° C ~ +70 ° C
