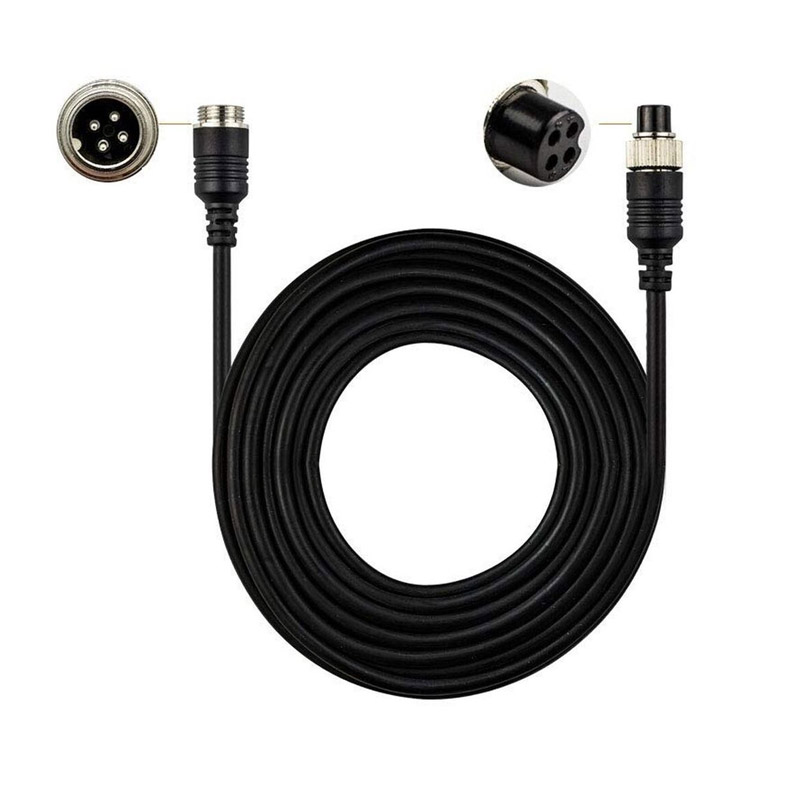

Male to Female 4-Pin Aviation Video Cable,1M/3M/5M/10M/15M/20M/25M is available
Brand:
DUUHNNItem NO.:
BH-EC01,EC03,EC05,EC10,EC15,EC20,EC25Order(MOQ):
1pcsPayment:
TT, Paypal,Western Union,MoneyGram,AlipayPrice:
Warranty:
Delivery Time:
2-5 working days for sampleThis Male to Female 4Pin Aviation Extension video cable is for the reversing camera systems that have waterproof connectors. It is one cable transmits video and power together. Video Aviation Cable 4-Pin.
1M/3M/5M/10M/15M/20M/25M is available long and comes with a rubber O-ring on the screw fit connector. This makes the join waterproof. It is ideal for use if you have not bought a long enough cable for your reversing camera system. Vehicle Video Extension Cable 4-Pin Aviation.
What length of aviation extension cable should we select?
Usually for the bus camera system,different sides cameras need to select different length extension cable.
5Meters: for front view camera
10Meters: for side view camera
15-25Meters: for reverse camera

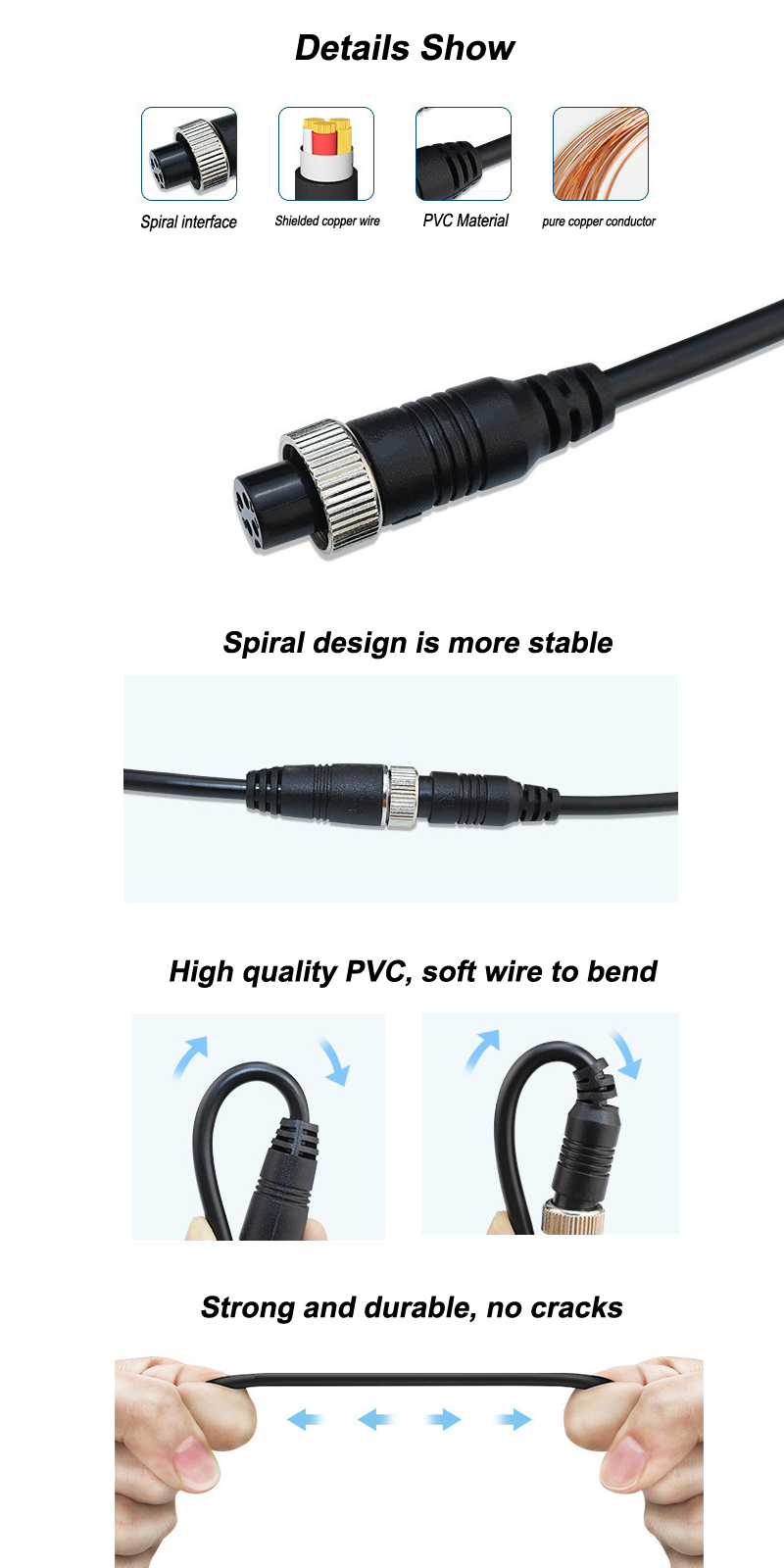

Feature:
-Male to Female Connection 4PIN Aviation Video Power Audio Wire in one Cable.
-Weatherproof and Shockproof for outdoor use.
-Nickel plated plugs to ensure precisely signals transmitting.
- No worry about losing signal between monitor and camera, original design and easy installation.
-The arrow signal ensure the male and female connector matching correctly.
-Special thick hard wire 100% shield offering super protection against vehicle's circuit interference and other EMI RFI interference.
-Compatible with professional CCTV/ surveillance 4-pin connector monitor, rearview camera, DVD player, TV box.
Specifications:

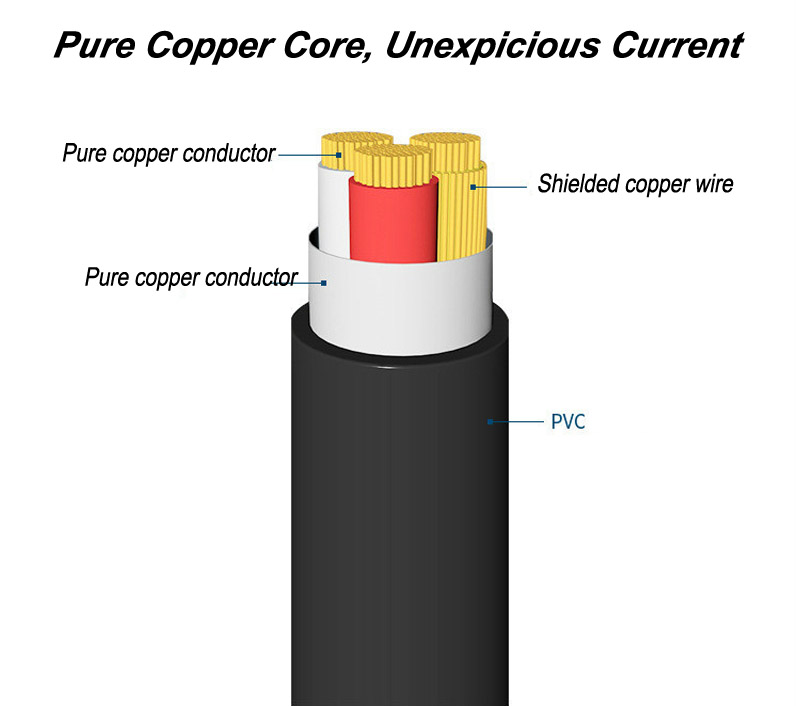

* Copper wire specifications:
7/0.15 red and white copper buns aluminum+8/0.15 copper bag aluminum +3 copper yellow+oblique bag 21/0.12 copper bag aluminum+aluminum foil entanglement

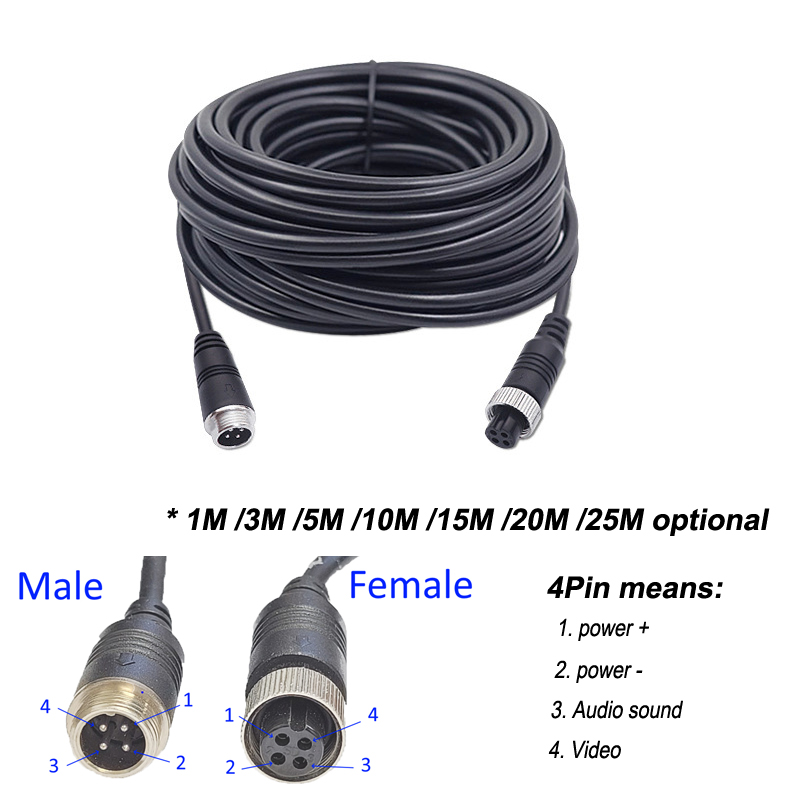

* Connector Spec:M12 4Pin Aviation connector,one side is male,the other side is female

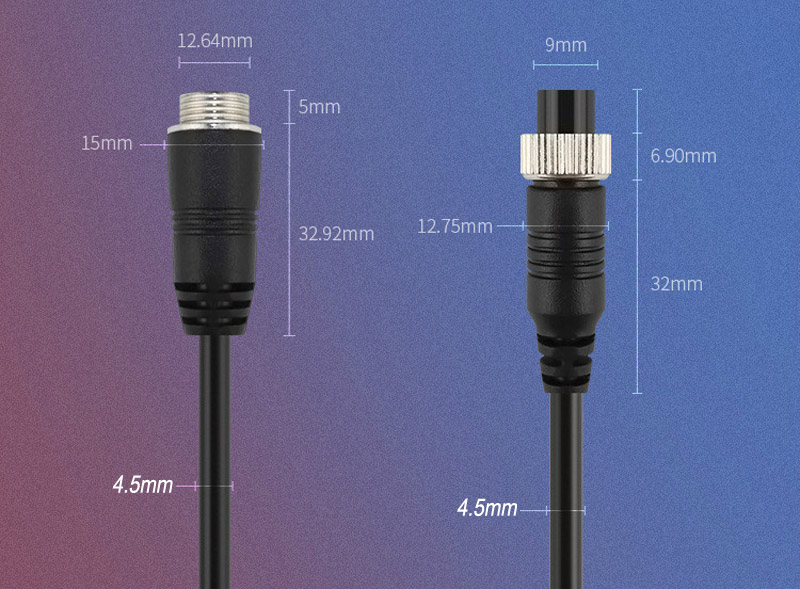

* Cable spec: the cable Outer diameter is 4.5-5mm. the length 1M/3M/5M/10M/15M/20M/25M is available
* Power Input:DC12V-DC24V
Application
Suitable for connecting Rearview Camera system such as Bus Campers Van Semi-Truck Box Truck Caravans Motorhome Horse Trailer Farm Tractor RV CCTV system.
Model List
Model List | Cable Length | Connector |
BH-EC01 | 1Meter | One end is 4P aviation male connector, the other end is 4P aviation female connector |
BH-EC03 | 3Meters | |
BH-EC05 | 5Meters | |
BH-EC10 | 10Meters | |
BH-EC15 | 15Meters | |
BH-EC20 | 20Meters | |
BH-EC25 | 25Meters |
