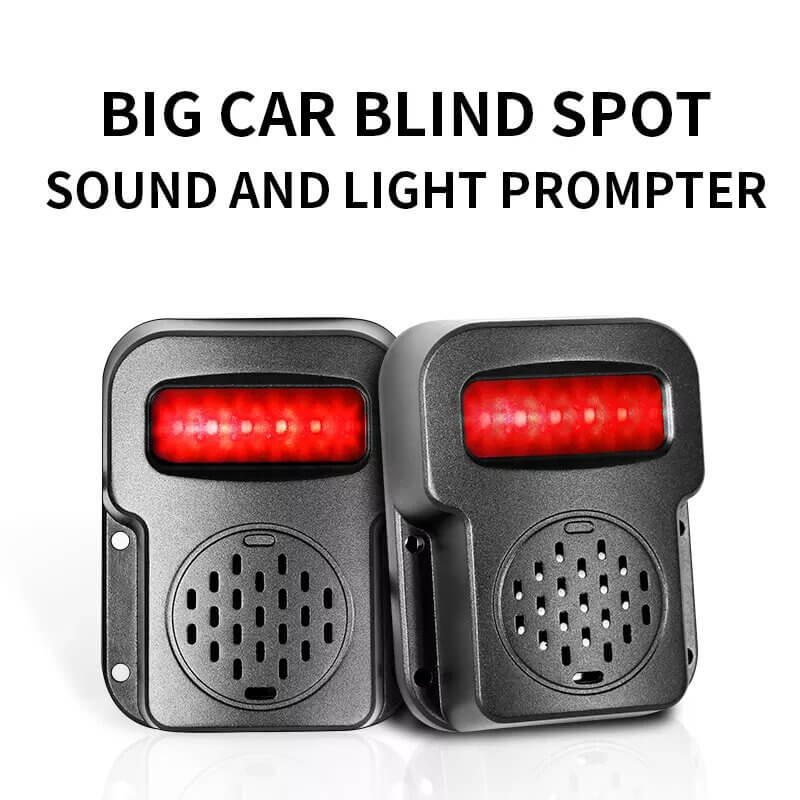

BSD Light and Sounds Warming Buzzer

wide voltage 8-36V design, BSD AI camera system light and sound alarm buzzer

  • Brand:

    DUUHNN
  • Item NO.:

    DH-LSW01
  • Order(MOQ):

    1pcs
  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay
  • Price:

  • Warranty:

    1Years
  • Delivery Time:

    3-8 working days for sample

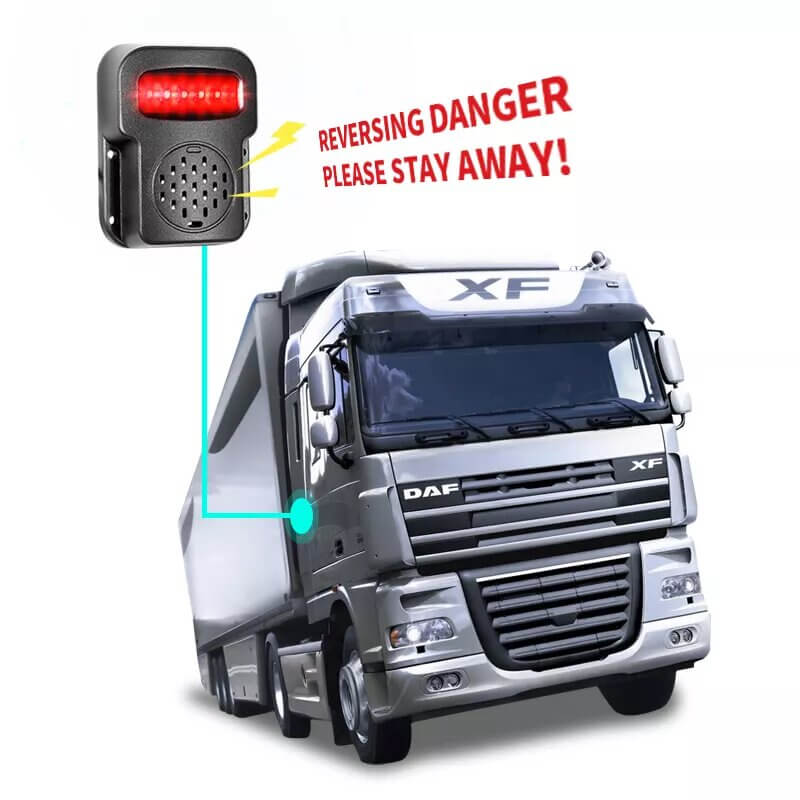

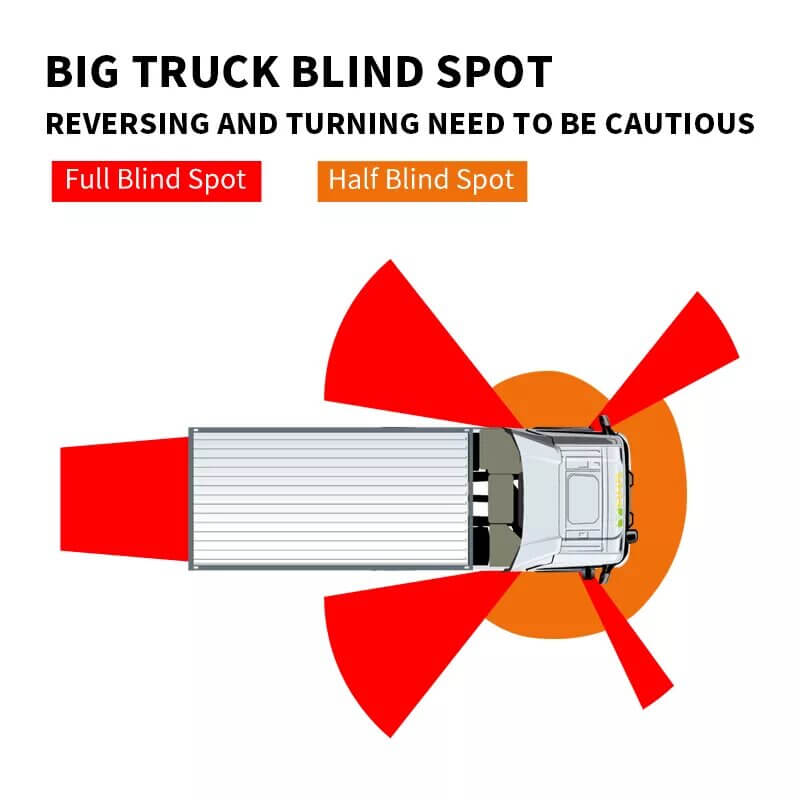

As we know, the commercial vehicles exist kinds of blind spot when driving,parking,turning right or left. It needs to have one device to remind driver when somebody nearby. The buzzer is one good device to install the heavy duty truck, which connect to camera system. When someone move close to the danger zoom of truck, the camera will collect the image,and trigger the AI BSD monitor host to release buzzer warming passenger and animals "Danous! pls stay away!"


Features

* Wide voltage 8-36V design

* Support LED flashing frequency adjustment range 1-5Hz

* Red light design, strong penetration of smog

* Solve light pollution, save energy and protect the environment

* The waterproof level of the shell reaches IP69K

* Original imported light source, effectively reducing light attenuation

* Using new heat dissipation materials, the product has a long life

* The overall design is novel and unique, easy to install and operate

* Independent electrification structure and control system, stable performance

* It can be used in harsh and cold environments as low as -30 degrees

* One AI BSD monitor can match max 4pcs light and sounds alarm buzzers



Specification

itemBSD Sound and Light Alarm Buzzer
Typeone way
Control Distance<10m
FunctionAlarm Warming via light and sound
VoltageDC 8-36V
Max power12Watt
WaterproofIp67
Alarm communication interfaceRS485/RS232 optional,IO*4 optional(high current trigger)
Speaker5w
Communication baud rate4800~115200

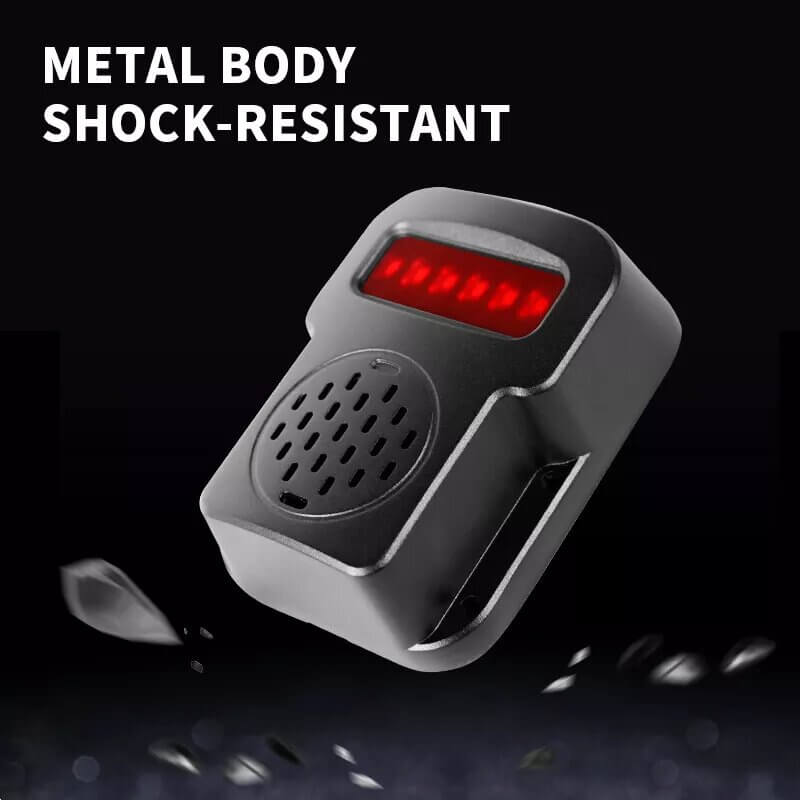

MaterialAluminum Alloy Metal Shell Design
systemLess more than 6W
Light TypeRed Flashing
Light ColorsWhite/red/yellow optional

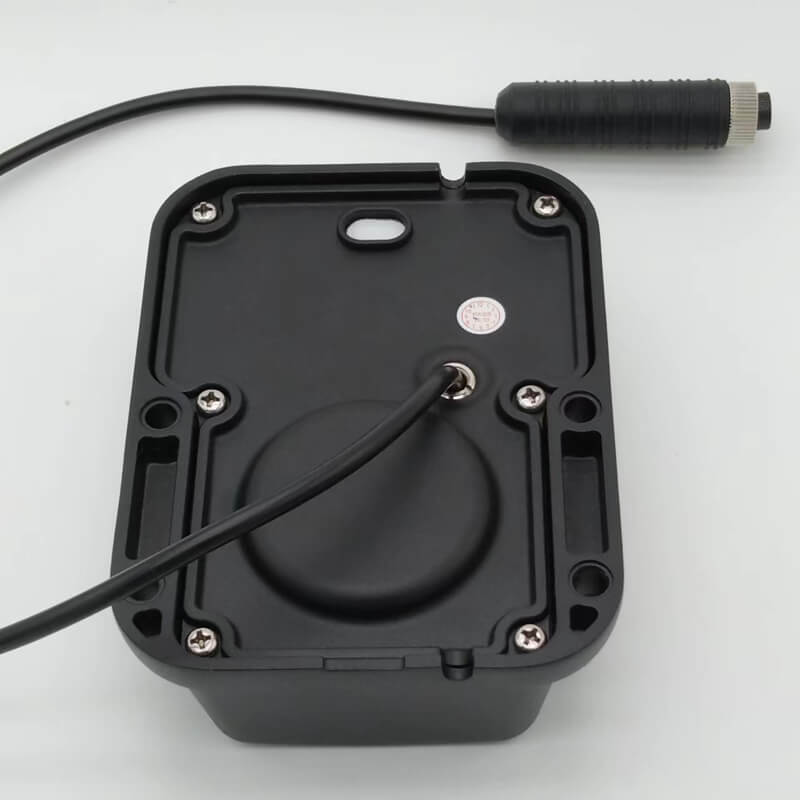

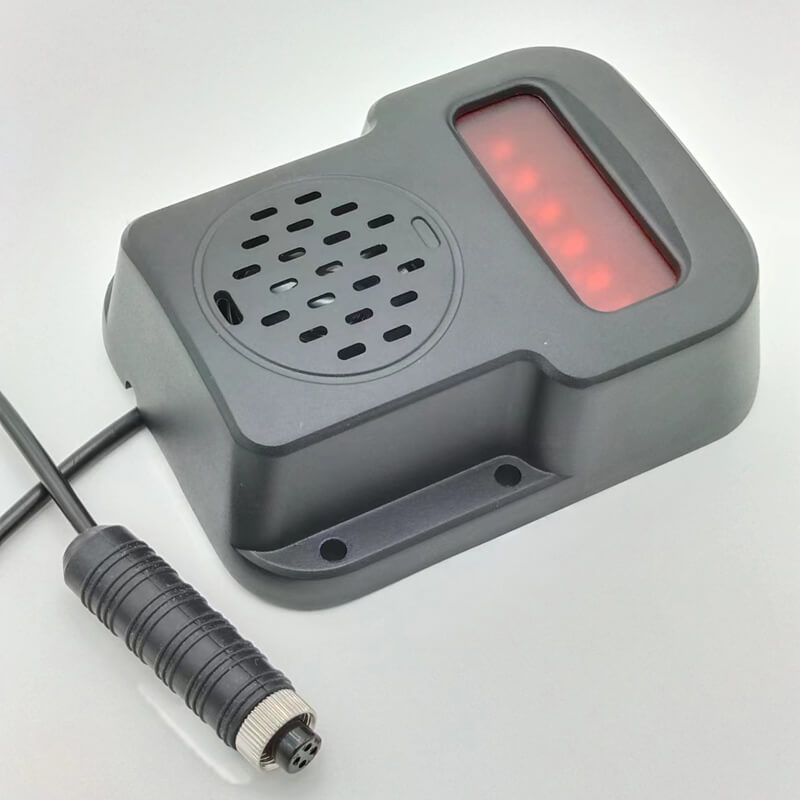

Connector type4P aviation connector
Cable length30cm(customization)
Install type4fix holes
Screw specM5
Device ColorBlack
ApplicationTruck Security System BSD Alarm Buzzer
Working Temp.-40 ~ +80 degree

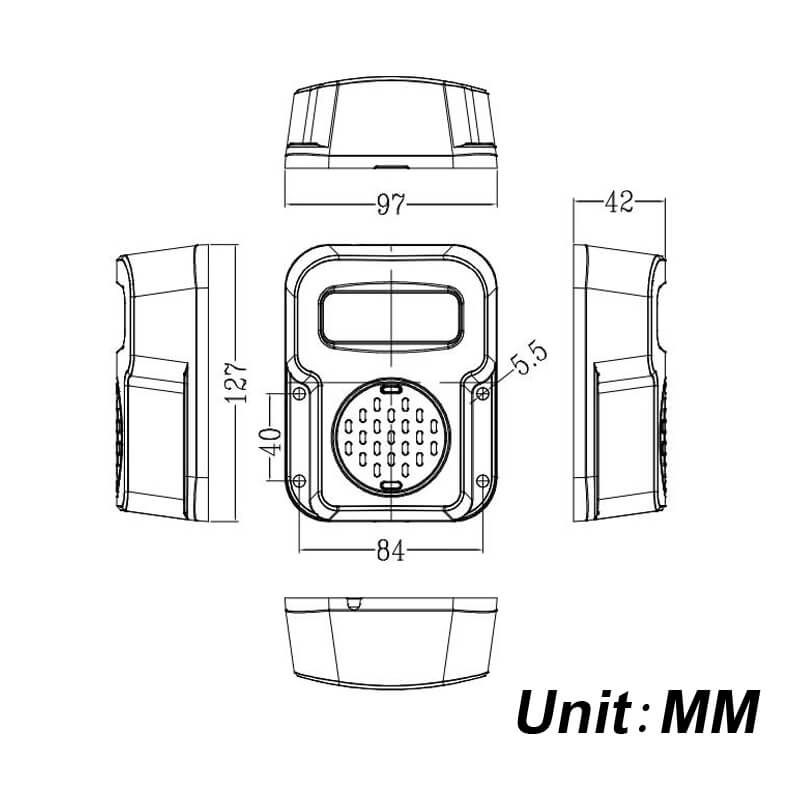

Size127*97*42mm
