DSM camera and installed on the A pillar or windshield for various models,matching AI MDVR to use together.
Brand:
DUUHNNItem NO.:
DH-DC01Order(MOQ):
1pcsPayment:
TT, Paypal,Western Union,MoneyGram,AlipayPrice:
Warranty:
2YearsDelivery Time:
2-5 working days for sampleshare to:

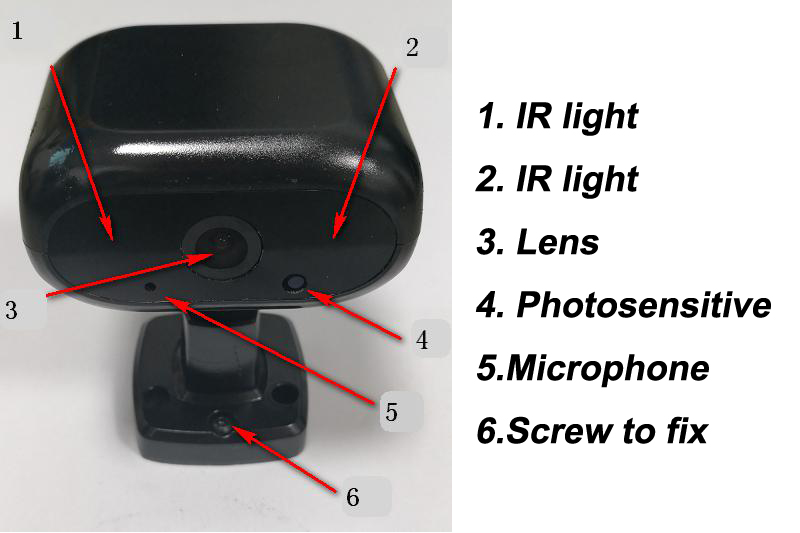

Feature
* As DSM camera and installed on the A pillar or windshield of various models
* As front view DSM camera if installed in the middle of windshield of the vehicle to record wide-angle video;
* As rear view camera if installed on the rear B pillar of the car for wide-angle;
* Cable is standard 60cm air connector as default;
* Audio sound or speaker optional
Specification
Sensor | GC2053 CMOS 1/2.9 inch | ||
Pixel size | 2.8μm*28μm | ||
TV Standard | PAL/NTSC, default PAL | ||
Resolution | 1920（H）X720（V） 1 Mega pixels | ||
Synchronization system | Inner Synchronization | ||
Vertical sync frequency | 50Hz / 60Hz | ||
Minimum illumination | 0.001Lux/F1.2 | ||
Video out | 1.0vp-p, 75Ω | ||
Gamma rate | 0.45 | ||
AGC | auto | ||
Wide dynamic range | no | ||
Sound to Noise Ratio | > 48dB | ||
White balance | auto | ||
BLC | auto | ||
Lens | size | f=2.8mm | F=2.0 |
horizontal angle | 115° | ||
Diagonal angle | 135° | ||
IR light | 1Meters | ||
IR-CUT | No | ||
Audio | yes | ||
Electric current | 140mA±10% (IR light on) | ||
Voltage | DC9-16V | ||
Operating temperature | －20°C~70°C , RH95％ MAX | ||
Storage temperature | －30°C~80°C，RH95％ MAX | ||
Net Weight | 110g(without cable) | ||
