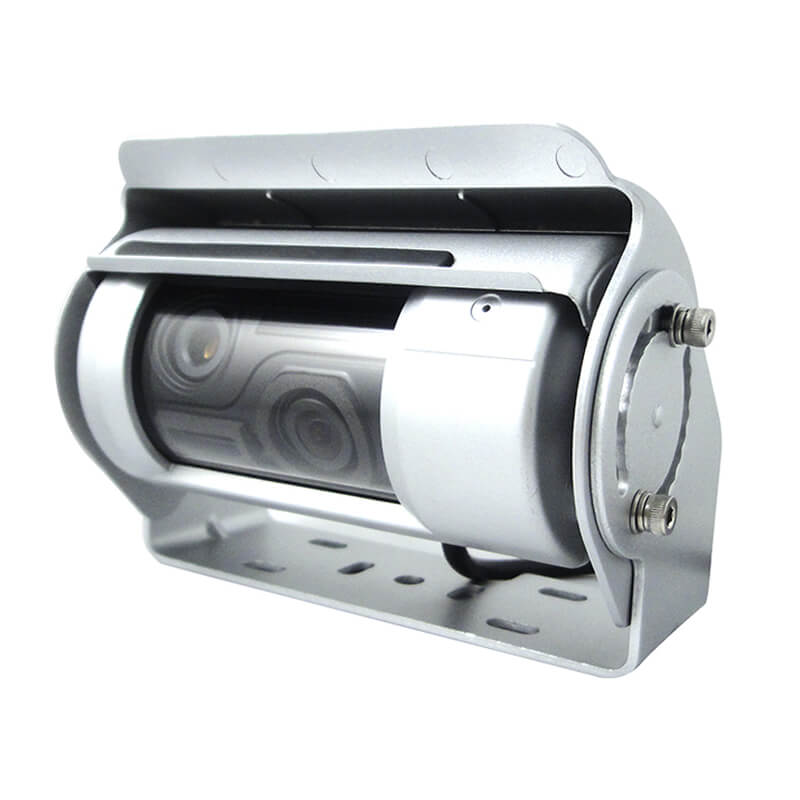

Dual Lens Fleet Reverse Back Up Camera with Motorized Shutter


Dual Lens Fleet Reverse Back Up Camera with Motorized Shutter

Dual Lens Fleet Reverse Back Up Camera with Motorized Shutter

Dual Lens Fleet Reverse Back Up Camera with Motorized Shutter, Auto Heating, Auto Shutter/cleaning, Dual lens wide angle 120° and small angle 43°. Best rear view vehicle cams for commercial truck.

  • Brand:

    DUUHNN

  • Item NO.:

    DH-RC01

  • Order(MOQ):

    1pcs

  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay

  • Price:

  • Warranty:

    2Years

  • Delivery Time:

    2-5 working days for sample
Inquiry now

Dual lens fleet reverse back up camera with motorized shutter


Highlights

of Fleetcam Reversing Back Up Camera:

* Sony CCD sensor AHD

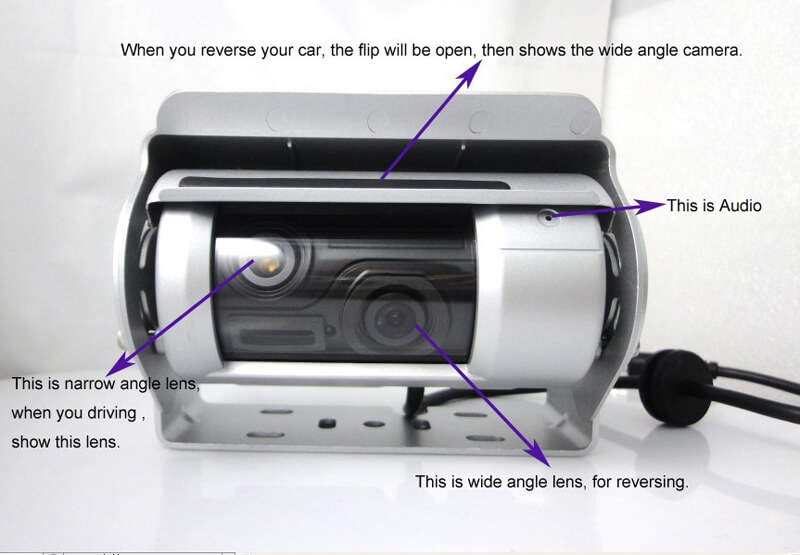

* Dual lens wide angle 120° and small angle 43°

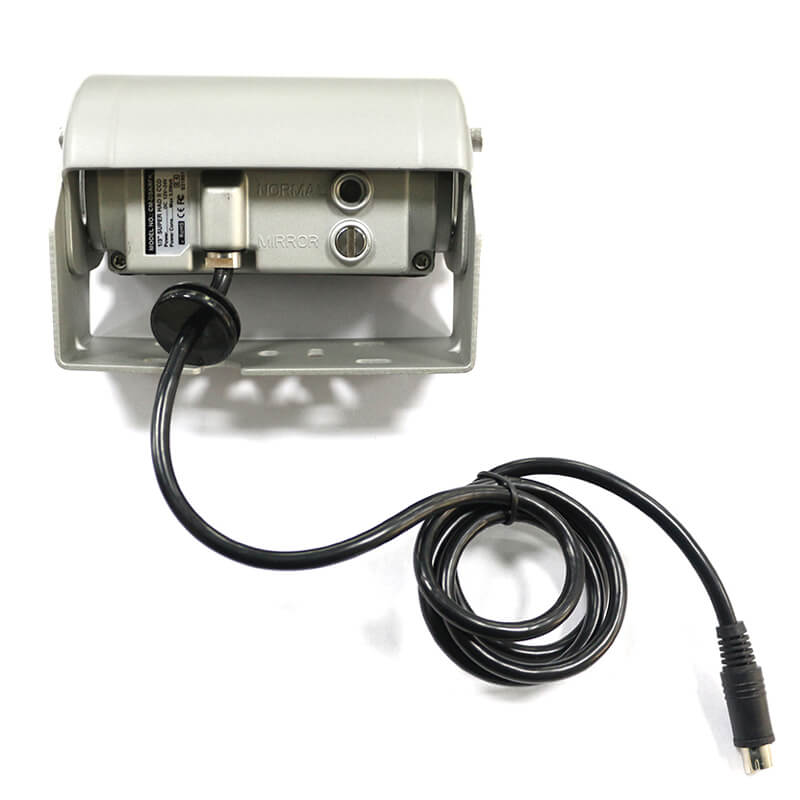

* Mirror/Normal image switchable

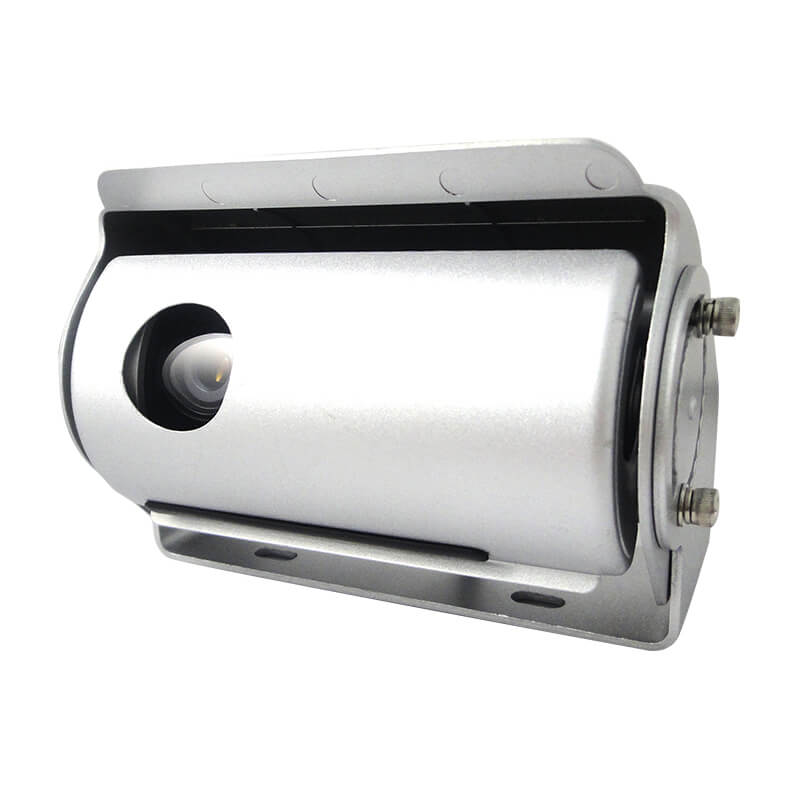

* Automatic shutter/cleaning function

* Vandal resistant

* Automatic heating function

* Waterproof IP69K

* Easy installation


vehicle cams.jpg


Specifications

Image sensorSONY CCD
TV  Mode  PAL/NTSC
Image Sensor1/3" SONY CCD
Operation voltage rangeDC12V(10-16V)
working current63mA±10mA
Power Consumption0.72W@DC12V
Video Output1±0.2 Vpp 75Ω
Pixels
USEFUL PIXELS768*494
Minimum lllumination0.3 Lux
Wide Dynamic80dB
Signal to Noise ratio52dB
resolution ratio3,700,000 Pixsls
Gamma value0.45

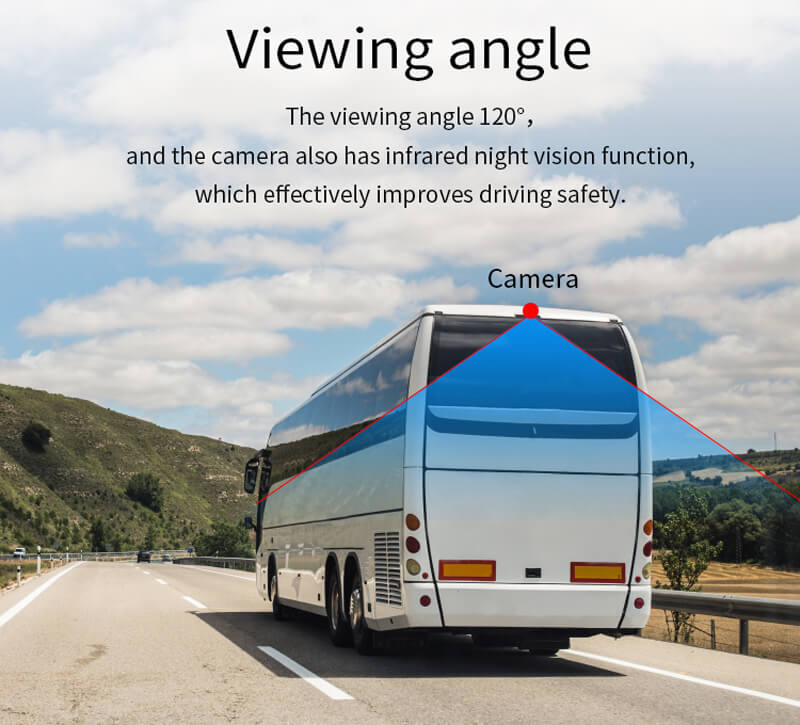

Lens angledual lens: 120/43 degrees
Shutter Speed1/60~1/100,000（second）
IRIS MethodAuto
waterproof levelIP69K
white balanceAuto
AGCAuto
Backlight compensationAuto
Operation Humidity85 RH%
Operation Temperature-20℃~ +70℃
Storage Temperature

-40℃~+85℃

cameras for vehicles.jpg

Applications

driver camera system.jpg


Dual lens fleetcam rear view back up camera with motorized shutter suit for RV, truck, semi truck, tailer,bus etc vehicle cam and fleet management system.
