Commercial Backup Rearview Fleet Cameras for Truck Trailer


Commercial Backup Rearview Fleet Cameras for Truck Trailer

Commercial Backup Rearview Fleet Cameras for Truck Trailer

Commercial Backup Rearview Fleet Cameras for Truck Trailer RV Vehicle, HD resolution, waterproof and shockproof,wide angle. Best commercial vehicle video monitoring system and best fleet camera systems.

  • Brand:

    DUUHNN

  • Item NO.:

    DH-RC04

  • Order(MOQ):

    1pcs

  • Payment:

    TT, Paypal,Western Union,MoneyGram,Alipay

  • Price:

  • Warranty:

    2Years

  • Delivery Time:

    2-5 working days for sample
Inquiry now

Rear view safety fedex commercial truck backup camera


Main Features:


* CMOS 700TVL, AHD 720P or 1080P optional hdfleet safety cameras

* Flip cover shade for better reverse backup view

* Waterproof and shockproof, wide angle 150°


Specifications


Model

DH-RC04

Camera

Sensor

1/3 CMOS AHD


TV System

NTSC/PAL


Camera Ir LED

IR lamp with excellent night vision


Min IIIumination

0.1Lux@(F1.2,AGC ON);


Electronic Shutter

Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s


Focus

2.8mm


Lens Interface

M12


F.O.V

120° (D)、95°（H）、70°（V）


Backlight Compensation

Auto


Resolution

700TVL,AHD 720P or 1080P optional


Signal to Noise ratio

Better than 48dB

Interface

Connect

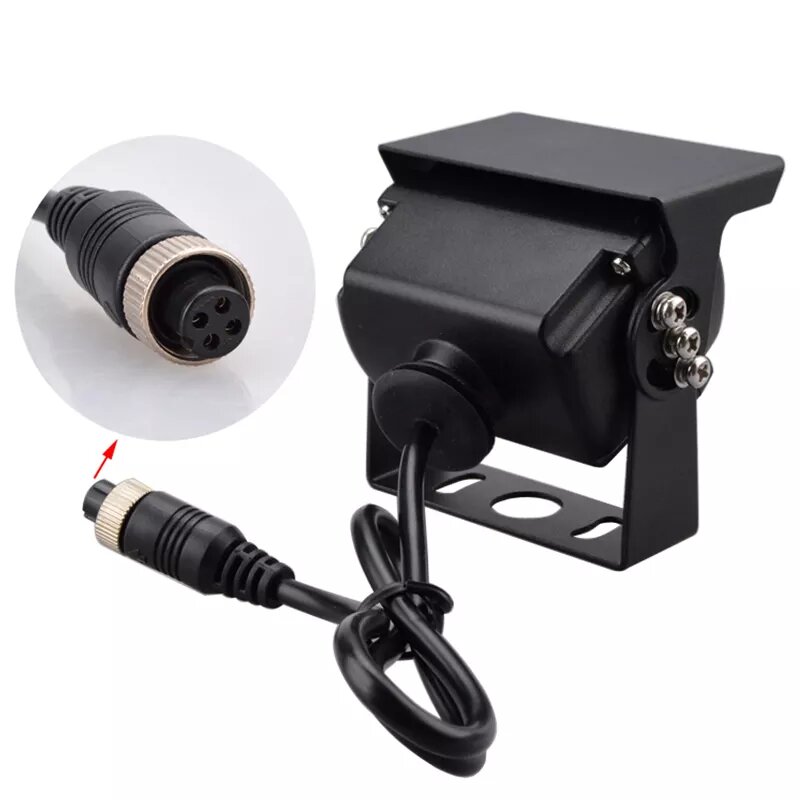

4 Pin Aviation Female Interface


Video Output

1Vp-p Composite Output(75Ω)


Audio Input

Options


Audio Output

Options

General

Material

Metal


Operating Temperature

-30℃~70℃


Usage

For passenger vehicles


Operating Voltage

DC9-36V±10%(From Reversing Monitor DC12V)


Power

12V

Waterproof

IP69K


Shockproof

Yes

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
